Inventive Garage Workshop is an Authorized Auxx-Lift Dealer offering the lowest prices in the market, rapid order processing, a super-strong buyer satisfaction guarantee, along with comprehensive, expert support before AND after the sale.
The platform frame is constructed with a versatile T-slotted framing rail made from 6105-T5 aluminum alloy. The long sides are made with 2 x 1 solid double T-slot and the short sides use 1 x 1 solid T-slotted beams.
| Model: | Attic-Lift 1400 |
| Lifting Capacity: | Up to 400 lbs |
| Max. Travel Distance1: | 12 ft or 18 ft |
| Installation Guide: | Attic-Lift Installation Guide (PDF) |
| Owner Manual: | Attic-Lift Owners Manual (PDF) |
| Owner Manual: | Attic-Lift Bottom Cover Installation Guide (PDF) |
| Frame: | T-slotted framing rail |
| Material: | 6105-T5 aluminum alloy |
| Decking: | 3/4 in thick Oak veenered plywood (5-ply) |
| Cable: | 1/8” Vinyl-coated Steel 7x19 |
| Cable Strength3: | 2,000 lbs |
| Type: | (2) 1 5/8" x 60" strut channel |
| Fasteners: | (8) 5/16" x 4" SPAX© Lag Bolts |
| Rated Power: | 235 W |
| Rated Current: | 2.2 A |
| Type: | IP44 (T-Motor) |
| Voltage / Phase: | 100-120V AC / Single |
| Duty Cycle @ Max. Capacity: | 3 min on, 15 min off3 IMPORTANT: This means approximately two round-trips every 15-20 minutes |
| Switch Voltage: | 110V / 120V |
| Transmitter: | 433.92 MHz |
| Electrical Cord: | 10 FT / 16 gauge / NEMA 5-15 |
| Min. circuit size: | 15 amp |
| Platform Size (Small): | 20.75 in x 44 in |
| Ceiling Cutout Size: | 22.5 in x 46.5 in |

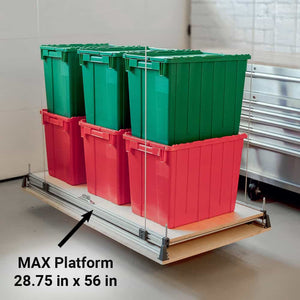

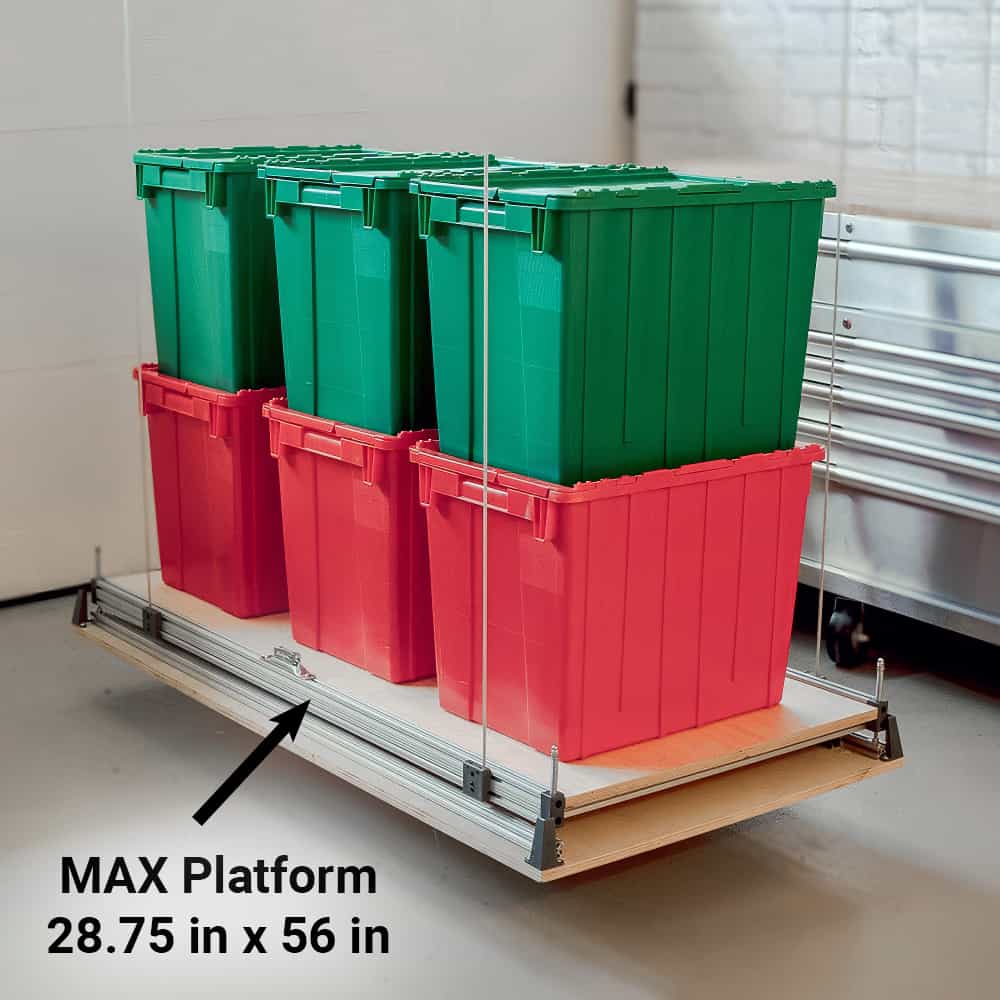

| Platform Size (Large): | 28.75 in x 56 in |
| Ceiling Cutout Size: | 30.5 in x 58.5 in |
|
Name |
Part # |
Qty |
| Controller | 1107A | 1 ea |
| Remote control | 1105A | 1 ea |
| ZSB motor left (400lbs) | 1509A | 1 ea |
| ZSB motor right (400lbs) | 1512A | 1 ea |
| 1-1/8in x 1/8in screws (For controller) | 0509A | 4 ea |
| Expansion anchors (for controller) | 0803A | 4 ea |
| Strut covers | 1206A | 2 ea |
| Rail cover caps | 1207A | 4 ea |
| Washers (for lag bolts) | 0400A | 8 ea |
| Lag bolts w/hex-head - 5/16in x 3in | 0507A | 8 ea |
| M12x24 bolt (for motor seating bracket) | 0505A | 4 ea |
| Washers (for motor seating bracket) | 0400A | 4 ea |
| Rubber PG grommets | 0802A | 2 ea |
| Strut spring nuts - 1/2in | 0302A | 4 ea |
| Motor seating bracket | 0201C | 4 ea |
| 60in strut channel (no side holes) | 1205A | 1 ea |
| 60in strut channel (w/ side holes) | 1213A | 1 ea |
| Cotter pins | 0602A | 4 ea |
| Wire rope clips w/ 2ea nuts | 0703A | 4 ea |
| Spring-loaded damper bracket (L) | 1505A | 2 ea |
| Spring-loaded damper bracket (R) | 1506A | 2 ea |
| 3ft long allen key extension stick w/ handle | 0002A | 2 ea |
| Warning label stickers | 2001A | 1 ea |
| 10ft power cable (white) | 1071B | 1 ea |
| Platform material | 1000A | 1 ea |
1 Standard cable allows up to 12 ft of travel. Extended length option allows up to 18 ft of travel.
2 Ultimate tensile strength
3 If you run the Attic-Lift continuously for more than three minutes at a time (approximately two round-trips), the motors will switch off automatically and require a cool-down period of 15 minutes or less.
(For General Reference Only)
