RXQ8417HRGK
RXQ8417HRGK
Inventive Garage Workshop is an Authorized Extreme Tools Dealer offering the lowest prices in the market, rapid order processing, a super-strong buyer satisfaction guarantee, along with comprehensive, expert support before AND after the sale.
▶ Installation Services Are Available Nationwide
| Specification | Details |
|---|---|
| Lid Panel: | 21 gauge 0.8mm |
| Lid Reinforce Support: | 19 gauge 1.0mm |
| Back Panels: | 19 gauge 1.0mm |
| Side Panels: | 18 gauge 1.2mm |
| Adjustable Shelf: | 18 gauge 1.2mm |
| Universal Power Tool Rack: | 16 gauge 1.5mm |
| Top Reinforce Support: | 21 gauge 0.8mm |
| Inner & Divider Panels: | 19 gauge 1.0mm |
| Type of Finish Unit: | AkzoNobel, High gloss coat finish bk: EN00FZ; BL: EJ01RC |
| Vertical Side Trim: | 2 polished Al trims to be installed by using 3M adhesive on outer vertical frame |
| Lock: | ABA Tubular coded lock and chrome plated bezel & keys EX01, EX02, EX03 and EX04 |
| Gas Springs: | 2 gas springs for lid panel 550N for each gas spring |
| Power Strips: | 2 x power strip w/(3) 120V outlets, 2 USB ports (include mounting hardware, customer install) |
| Power Tool Holder: | New improved 3 slot power tool holder |
| Socket Holder: | Removable socket holder, 3/8" drive: 30 holders; 1/4" drive: 46 holder |
| Hole on the back panel: | The size is 6.0 mm |
| Protective Ring: | The size is 38.5mm |
| Power tool holder: | 4-position power tool holder included |
| Peg board panel: | On both end pieces and back panel |
| Shelf (1): | Adjustable shelf designed to add many accessories |
| Top Panel: | 19 gauge 1.0mm |
| Bottom panel: | 6" x 2": 4 Mag wheel lockable swivel, 2 Mag wheel rigid- load rated 900 lbs each |
| Bottom Panel: | 21 gauge 0.8 mm |
| Back and sides: | 18 gauge 1.2mm |
| Top reinforce support: | 21 gauge 0.8mm |
| Inner Panels: | 19 gauge 1.0mm |
| Drawer front: | 18 gauge 1.2mm |
| Drawer back: | 21 gauge 0.8mm |
| Drawer body: | 18, 21 gauge 1.2, 0.8mm Top 3 wider drawers 18 Ga (1.2 mm) |
| Caster channels: | 12 gauge 2.5mm |
| Total Capacity: |
47686 Cubic Inch 12567 SQ inch |
| Number of Drawers: |
16 |
| Slides (22 pairs): |
300 lb Full-extension ball bearing slides |
| Drawer Load Rating: |
250 lbs per set of slides, two pairs slides for drawer over 4" deep |
| Drawer pulls: |
High polished AL extrusion, Quick Release, self-latching |
| Drawer liners: |
PVC high density foam |
| Specification | Details |
|---|---|
| Lid Panel: | 21 gauge 0.8mm |
| Lid Reinforce Support: | 19 gauge 1.0mm |
| Back Panels: | 19 gauge 1.0mm |
| Side Panels: | 18 gauge 1.2mm |
| Adjustable Shelf: | 18 gauge 1.2mm |
| Universal Power Tool Rack: | 16 gauge 1.5mm |
| Top Reinforce Support: | 21 gauge 0.8mm |
| Inner & Divider Panels: | 19 gauge 1.0mm |
| Type of Finish Unit: | AkzoNobel, High gloss coat finish bk: EN00FZ; BL: EJ01RC |
| Vertical Side Trim: | 2 polished Al trims to be installed by using 3M adhesive on outer vertical frame |
| Lock: | ABA Tubular coded lock and chrome plated bezel & keys EX01, EX02, EX03 and EX04 |
| Gas Springs: | 2 gas springs for lid panel 550N for each gas spring |
| Power Strips: | 2 x power strip w/(3) 120V outlets, 2 USB ports (include mounting hardware, customer install) |
| Power Tool Holder: | New improved 3 slot power tool holder |
| Socket Holder: | Removable socket holder, 3/8" drive: 30 holders; 1/4" drive: 46 holder |
| Hole on the back panel: | The size is 6.0 mm |
| Protective Ring: | The size is 38.5mm |
| Power tool holder: | 4-position power tool holder included |
| Peg board panel: | On both end pieces and back panel |
| Shelf (1): | Adjustable shelf designed to add many accessories |
| Top Panel: | 19 gauge 1.0mm |
| Bottom panel: | 6" x 2": 4 Mag wheel lockable swivel, 2 Mag wheel rigid- load rated 900 lbs each |
| Bottom Panel: | 21 gauge 0.8 mm |
| Back and sides: | 18 gauge 1.2mm |
| Top reinforce support: | 21 gauge 0.8mm |
| Inner Panels: | 19 gauge 1.0mm |
| Drawer front: | 18 gauge 1.2mm |
| Drawer back: | 21 gauge 0.8mm |
| Drawer body: | 18, 21 gauge 1.2, 0.8mm Top 3 wider drawers 18 Ga (1.2 mm) |
| Caster channels: | 12 gauge 2.5mm |
| Total Capacity: |
47686 Cubic Inch 12567 SQ inch |
| Number of Drawers: |
16 |
| Slides (22 pairs): |
300 lb Full-extension ball bearing slides |
| Drawer Load Rating: |
250 lbs per set of slides, two pairs slides for drawer over 4" deep |
| Drawer pulls: |
High polished AL extrusion, Quick Release, self-latching |
| Drawer liners: |
PVC high density foam |
Extreme Tools® offers you the utmost value for your hard-earned money through the creation of innovative, enduring features. They pride themselves on their exceptional quality, state-of-the-art exclusive designs, and top-notch customer service. With a fully stocked warehouse ready to ship directly to your doorstep, they are your ultimate destination for all your tool storage requirements.
Limited Lifetime
Price Match Guarantee: We'll beat any price
No Sales Tax outside New York
30-Day Easy Returns
Free Design Service
Authorized Dealer for all top brands
Superhuman Customer Service
100% Quality Assured
▶ Click Here ◀ for a Complete List of Reasons Why Inventive Is Your Best Choice
▶ Click Here◀ for Complete Shipping Details

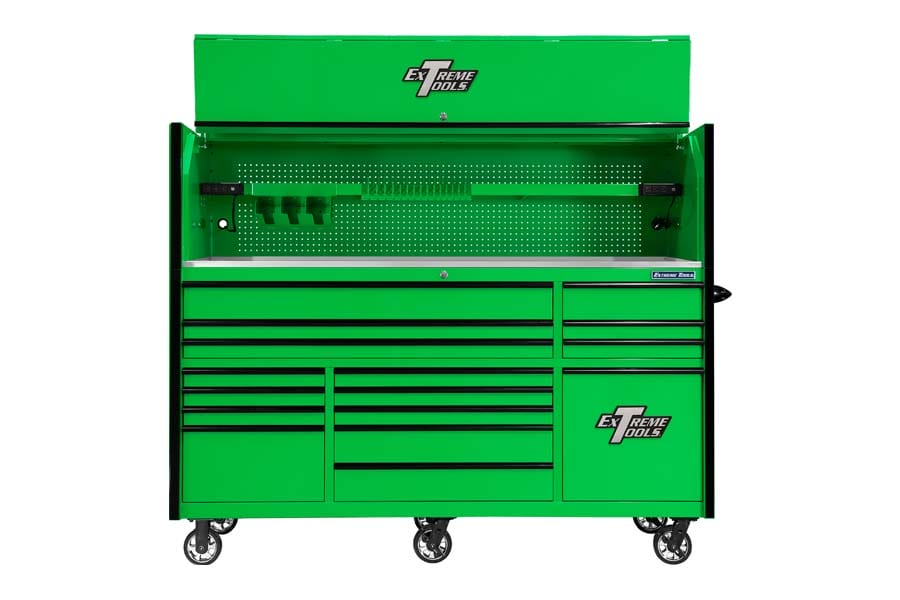

The RX Series RXQ8417HR is an 84" professional-grade workstation with 16 drawers, a fully equipped Power Tool Drawer, stainless steel work surface, and a heavy-duty hutch—built to handle serious tools, tough jobs, and high-demand workspaces.
| Specification | Details |
|---|---|
| Lid Panel: | 21 gauge 0.8mm |
| Lid Reinforce Support: | 19 gauge 1.0mm |
| Back Panels: | 19 gauge 1.0mm |
| Side Panels: | 18 gauge 1.2mm |
| Adjustable Shelf: | 18 gauge 1.2mm |
| Universal Power Tool Rack: | 16 gauge 1.5mm |
| Top Reinforce Support: | 21 gauge 0.8mm |
| Inner & Divider Panels: | 19 gauge 1.0mm |
| Type of Finish Unit: | AkzoNobel, High gloss coat finish bk: EN00FZ; BL: EJ01RC |
| Vertical Side Trim: | 2 polished Al trims to be installed by using 3M adhesive on outer vertical frame |
| Lock: | ABA Tubular coded lock and chrome plated bezel & keys EX01, EX02, EX03 and EX04 |
| Gas Springs: | 2 gas springs for lid panel 550N for each gas spring |
| Power Strips: | 2 x power strip w/(3) 120V outlets, 2 USB ports (include mounting hardware, customer install) |
| Power Tool Holder: | New improved 3 slot power tool holder |
| Socket Holder: | Removable socket holder, 3/8" drive: 30 holders; 1/4" drive: 46 holder |
| Hole on the back panel: | The size is 6.0 mm |
| Protective Ring: | The size is 38.5mm |
| Power tool holder: | 4-position power tool holder included |
| Peg board panel: | On both end pieces and back panel |
| Shelf (1): | Adjustable shelf designed to add many accessories |
| Top Panel: | 19 gauge 1.0mm |
| Bottom panel: | 6" x 2": 4 Mag wheel lockable swivel, 2 Mag wheel rigid- load rated 900 lbs each |
| Bottom Panel: | 21 gauge 0.8 mm |
| Back and sides: | 18 gauge 1.2mm |
| Top reinforce support: | 21 gauge 0.8mm |
| Inner Panels: | 19 gauge 1.0mm |
| Drawer front: | 18 gauge 1.2mm |
| Drawer back: | 21 gauge 0.8mm |
| Drawer body: | 18, 21 gauge 1.2, 0.8mm Top 3 wider drawers 18 Ga (1.2 mm) |
| Caster channels: | 12 gauge 2.5mm |
| Total Capacity: |
47686 Cubic Inch 12567 SQ inch |
| Number of Drawers: |
16 |
| Slides (22 pairs): |
300 lb Full-extension ball bearing slides |
| Drawer Load Rating: |
250 lbs per set of slides, two pairs slides for drawer over 4" deep |
| Drawer pulls: |
High polished AL extrusion, Quick Release, self-latching |
| Drawer liners: |
PVC high density foam |
Extreme Tools® offers you the utmost value for your hard-earned money through the creation of innovative, enduring features. They pride themselves on their exceptional quality, state-of-the-art exclusive designs, and top-notch customer service. With a fully stocked warehouse ready to ship directly to your doorstep, they are your ultimate destination for all your tool storage requirements.
