| Specification | Model 5222-S | Model 5228-S |
|---|---|---|
| Overall Dimensions | 22" W x 57.5" L x 7" H | 28" W x 57.5" L x 7" H |
| Platform Dimensions | 18" W x 41" L | 24" W x 41" L |

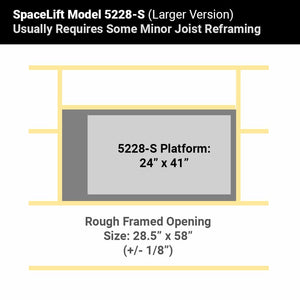

| Rough Framed Opening | 22.5" W x 58" L (+/- 1/8") | 28.5" W x 58" L (+/- 1/8") |
| Ceiling Drywall Cutout | 22.5" W x 46" L | 28.5" W x 46" L |
| Landing Space Area | 24.5" W x 48" L | 30.5" W x 48" L |
| Assembled Unit Weight | 75 lbs | 88 lbs |
| Specification | Details |
|---|---|

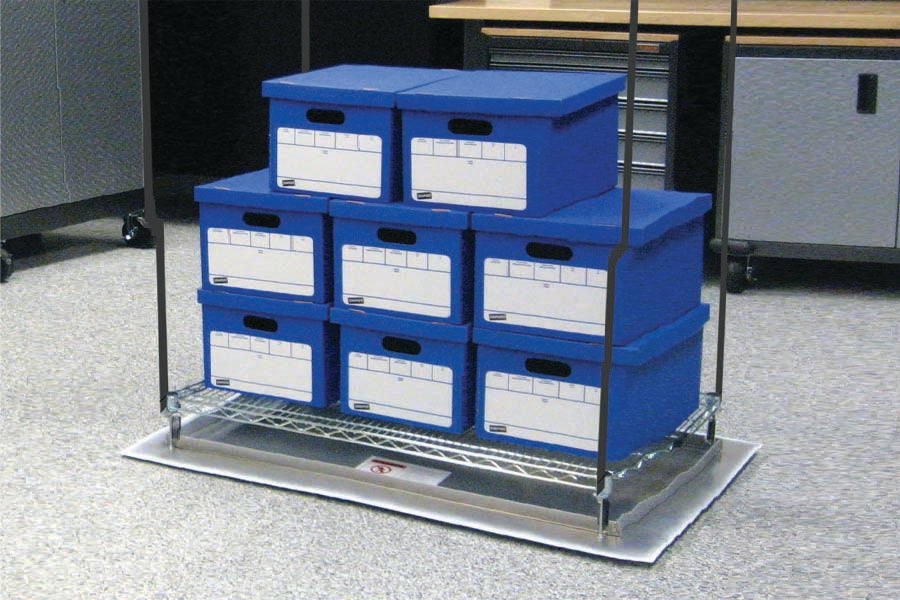

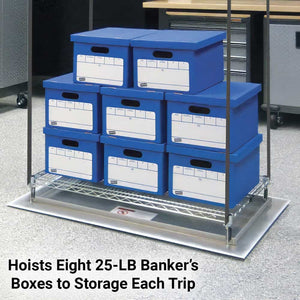

| Lift Weight Capacity | 200 lbs per trip |
| Lift Speed | 3 inches per second |

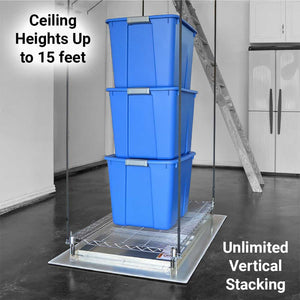

| Maximum Vertical Travel | Up to 15 feet |
| Joist/Ceiling Depth | 7 to 14 inches: unit will sit below top of joists. Under 7 inches: unit will not be flush with attic floor. |
| Power Requirement | 110–120 VAC, dedicated 15 amp circuit recommended. Max current draw: 4 amps at full load |

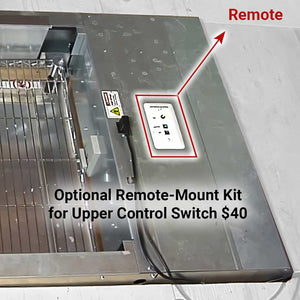

| Control Options | On-board controls with key lock; wall-mounted remote control unit |

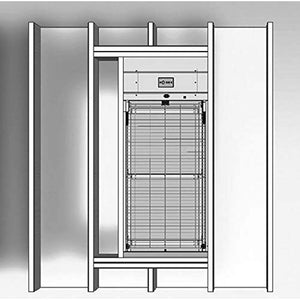

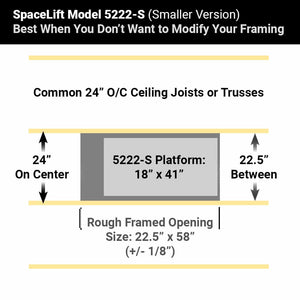

Compact and versatile, the 18" x 41" size is designed to fit between standard 24" on-center joists or trusses without cutting.
Spacious and efficient, the 24" x 41" size will fit the largest storage totes easily.

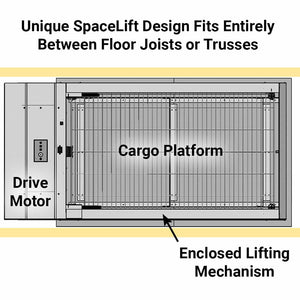

Note: The SpaceLift 5200-S Series attic lifts are designed to fit between attic floor joists with depths ranging from 7 to 14 inches. For joist depths less than 7 inches, the lift will extend above the attic floor.
| Specification | Model 5222-S | Model 5228-S |
|---|---|---|
| Overall Dimensions | 22" W x 57.5" L x 7" H | 28" W x 57.5" L x 7" H |
| Platform Dimensions | 18" W x 41" L | 24" W x 41" L |
| Rough Framed Opening | 22.5" W x 58" L (+/- 1/8") | 28.5" W x 58" L (+/- 1/8") |
| Ceiling Drywall Cutout | 22.5" W x 46" L | 28.5" W x 46" L |
| Landing Space Area | 24.5" W x 48" L | 30.5" W x 48" L |
| Assembled Unit Weight | 75 lbs | 88 lbs |
| Specification | Details |
|---|---|
| Lift Weight Capacity | 200 lbs per trip |
| Lift Speed | 3 inches per second |
| Maximum Vertical Travel | Up to 15 feet |
| Joist/Ceiling Depth | 7 to 14 inches: unit will sit below top of joists. Under 7 inches: unit will not be flush with attic floor. |
| Power Requirement | 110–120 VAC, dedicated 15 amp circuit recommended. Max current draw: 4 amps at full load |
| Control Options | On-board controls with key lock; wall-mounted remote control unit |
Compact and versatile, the 18" x 41" size is designed to fit between standard 24" on-center joists or trusses without cutting.
Spacious and efficient, the 24" x 41" size will fit the largest storage totes easily.
Note: The SpaceLift 5200-S Series attic lifts are designed to fit between attic floor joists with depths ranging from 7 to 14 inches. For joist depths less than 7 inches, the lift will extend above the attic floor.
Preparing the Ceiling and Attic
How to Assemble the SpaceLift Motor Housing
Setting up the Pulleys and Straps for the SpaceLift Attic Lift
Install the SpaceLift Attic Lift Motor in the Ceiling
Assemble and Attach the SpaceLift CargoTray
Assembling and Attaching the SpaceLift Ceiling Cover
Programming the Attic Lift, Setting the Lower Travel Limit
Installing the Deflectors
SpaceLift™ Products, a division of Redco Home, offers innovative attic storage solutions designed to make accessing and utilizing attic space safer and more convenient. The company continues to innovate in the home storage solutions market, leveraging its proprietary technology to develop future products that will further enhance home storage capabilities.
